Description

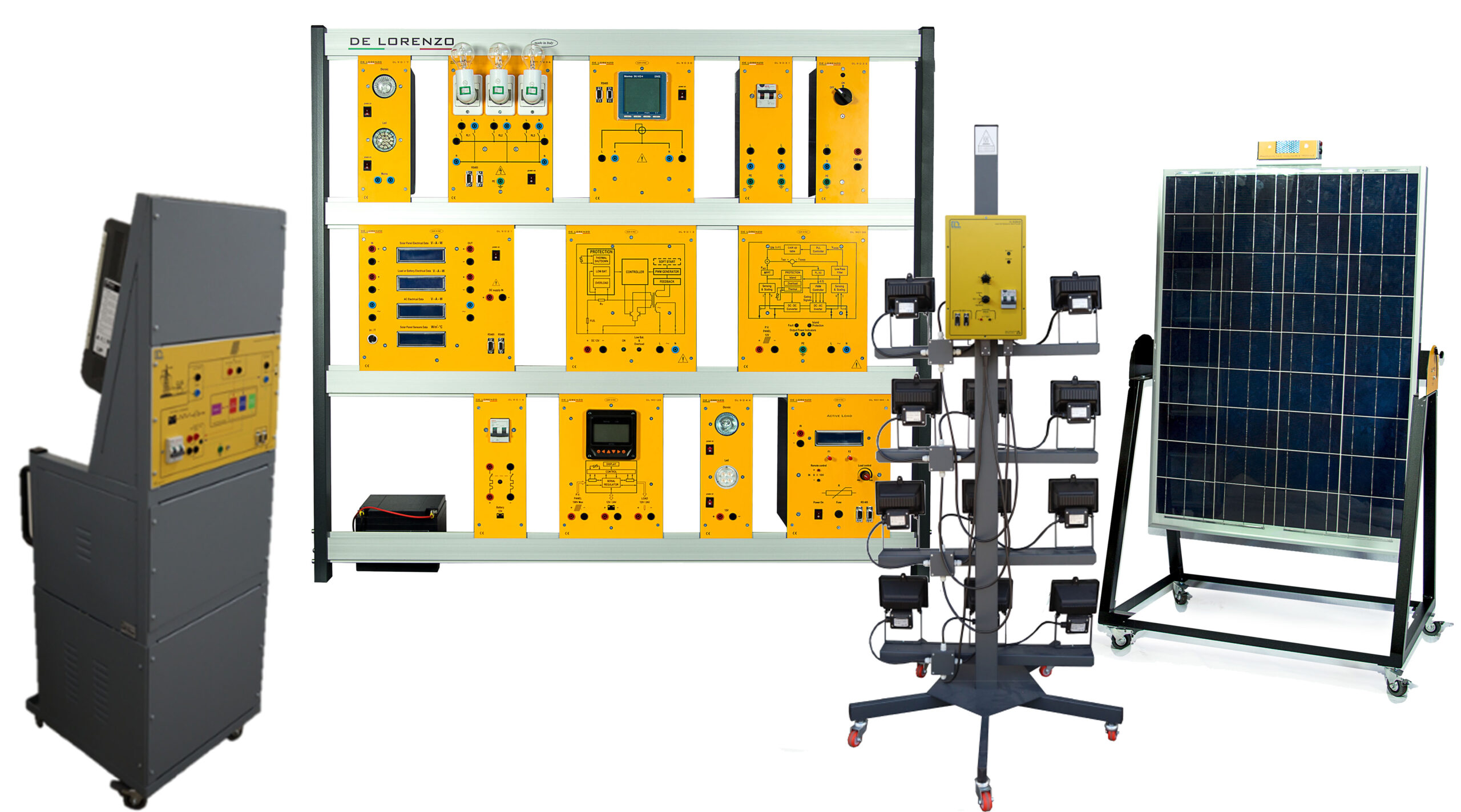

Modular trainer for the theoretical and practical study of the electric energy generation from photovoltaic panels.

With the on-grid solar energy with storage, it is possible to perform experiments to determine the characteristics of a photovoltaic panel, study its on-grid operation with the connection to the mains network and its operation with a grid-tie battery charge controller for storage.

The complete system is supplied with a sun simulation module for indoor use.
