The Reed Switch Probe is used to determine the location of magnetic sensors in magnetic settlement systems. When the reed switch passes through a magnetic field, it closes; completing a circuit and a buzzer is activated. The elevation of the magnet target is read directly from the tape. […]
Contact us for details

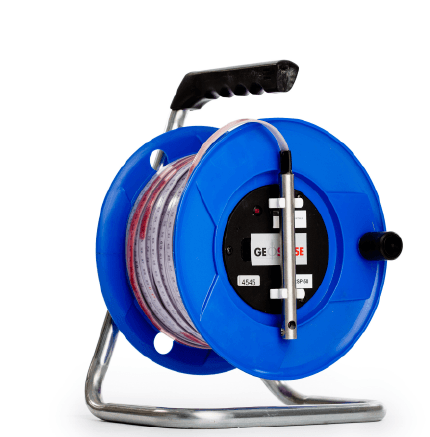

The Reed Switch Probe is used to determine the location of magnetic sensors in magnetic settlement systems.
When the reed switch passes through a magnetic field, it closes; completing a circuit and a buzzer is activated.
The elevation of the magnet target is read directly from the tape.
| Probe diameter | 14 mm |
| Probe length | 150 mm |
| Probe material | Austenitic stainless steel |
| Tape type | Steel mm markings |
| Tape width | 11.5 mm |
| Tape coating | Polyethylene |
| Tape lengths | 30, 50, 100, 150, 200 |
| Reel type | Polypropylene |
| Reel diameter | 230 mm |
| Audible Indicator | 88 dB(A) buzzer |
| Visual indicator | Red LED |
| Power | 9 volt PP3 battery |
| System precision | ± 3 to 5mm |
