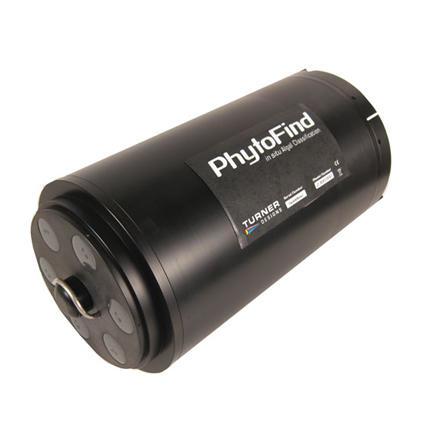

PhytoFind™ is an in situ Algal Classification tool that distinguishes among algal groups using specific fluorescence signatures. Real-time abundance estimates are calculated for PE-containing algae (mixed group), PC-containing algae (Cyanophyceae), andtotal algae (all other algal groups). Calculations include an automatic correction for interference from dissolved organic materials (DOM) providing more accurate real-time estimates. Optics are optimized to minimize interference from turbidity. Abundances are displayed and logged as group percentages along with temperature, depth, and chlorophyll (µg/L) concentrations.

PhytoFind is factory-calibrated; no calibration standards or tools are required. Solid-state optoelectronics ensure long term instrument stability and reliability. Factory-installed temperature and depth sensors are included in the standard PhytoFind package. A mechanical wiper can be factory installed to minimize biofouling on optical components. The durable delrin housing is highly resistant to harsh environments and additional antifouling materials such as copper can be purchased for long term deployments. A large capacity for internal memory storage (over 60,000 data points) and a high capacity (6600 mAh) external submersible lithium ion battery make the PhytoFind an ideal instrument for almost any environment or application.

Product Highlights:

• Real-Time Abundance Estimates
• Multiple Operation Modes
  - Profiling, Mooring, Towing
  - Maximum Sampling Rate is 1 second
• Integrate with Third Party Systems
  - ASCII String Output
• Depth and Temperature included
• Factory Calibrated

PhytoFind in situ Algal Classification with Wiper	E-541-2380-000
PhytoFind in situ Algal Classification	E-541-2380-001

Accessories

Replacement Spacers for Mechanical Wiper	E-541-2360-462
High Capacity Battery Bracket	E-541-2360-604
Shade Cap Weight	E-541-2360-510
Shade Cap	E-541-2360-500
Flow Cap	E-541-2360-700
Battery Bracket	E-541-2360-603
Antifouling Copper Plate	E-541-2360-507
Rechargeable Battery	E-541-2200-601
High Capacity Submersible Battery	E-541-3200-600

Cables and Boosters

Continuous Data Cable	E-541-2200-160
0.6 meter Pigtail Interface Cable with Locking Sleeve	E-541-2200-170
Communication and Integration Cable	E-541-2300-115
Extender Cables	E-541-105-259X
Boosters	E-541-2200-900
