Description

The simulator allows the study, the performing of experiments and the troubleshooting for the following systems:

• Photovoltaic silicon single crystal cell, squared, side 135 mm
• Two photovoltaic cells with series connection
• Two photovoltaic cells with parallel connection
• Panel composed of 36 photovoltaic cells with series connection
• Thermal panel with liquid circulation

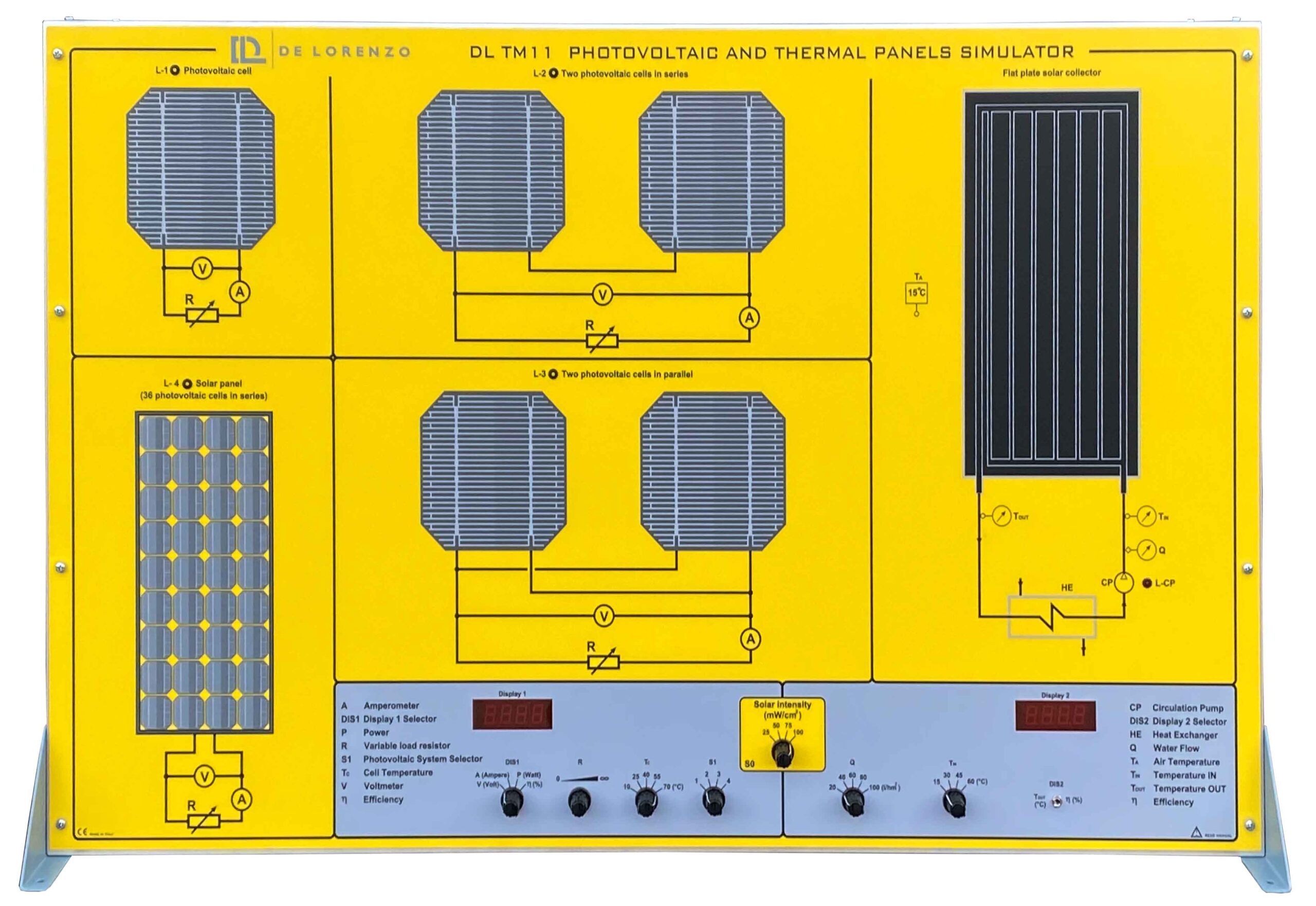

These systems are reproduced on the panel, through a color representation which allows a complete analysis of the fluid circuit, of its components and of the electrical/electronic circuit for control and regulation.
