2B Tech has taken the next step in miniaturization of UV-based ozone monitors by developing the “world’s smallest ozone analyzer.” The POM is a handheld EPA-certified Federal Equivalent Method (FEM) ozone monitor that utilizes the measurement technique of UV absorption. The instrument is capable of providing highly accurate/precise ozone measurements in a package that is unique to the ambient ozone monitoring market.

• 0-10 ppm measurement range with 1.5 ppb precision
• Handheld with battery and GPS
• EPA designated as a Federal Equivalent Method (FEM) for ozone: EQOA–0815–227.

Overview

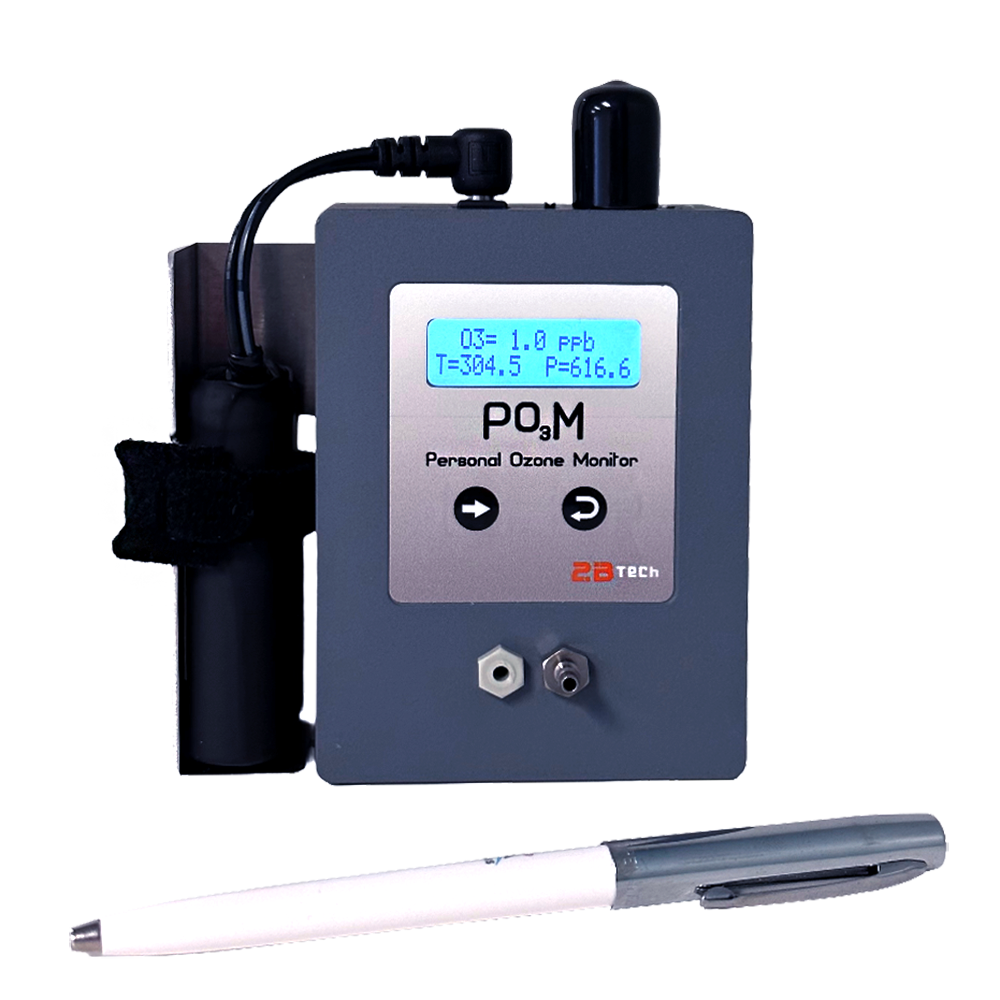

• POM unit has dimensions of 4 x 3 x 1.5 inches and weighs only 0.8 lb/360 g (without battery) or 1.0 lb/450 g (with battery)
• Built-in GPS so that ozone measurements may be logged continuously along with geographic location
• Folded “U” shaped optical path, allowing the instrument to achieve the same path length as the Models 106-L, 202, and 205

Features

• Small (palm-sized)
• Lightweight (~1 lb)
• Same measurement principle (UV absorbance) and similar precision (~1.5 ppb) as much larger instruments
• Approved as a Federal Equivalent Method (FEM) (EQOA-0815-227)
• Measure ozone up to 10,000 ppb (10 ppm)
• Belt clip and compact lithium-ion battery pack in side bracket for extreme portability
• Adapters enable 100-240 VAC or 12V battery operation
• Low power requirement: 3 watt
• Internal data logger
• Built-in GPS logs location along with ozone measurements
• Fast 2-s or 10-s measurements
• User-selected averaging times of 1 min, 5 min, or 1 hr
• Serial or USB connections for data downloading
