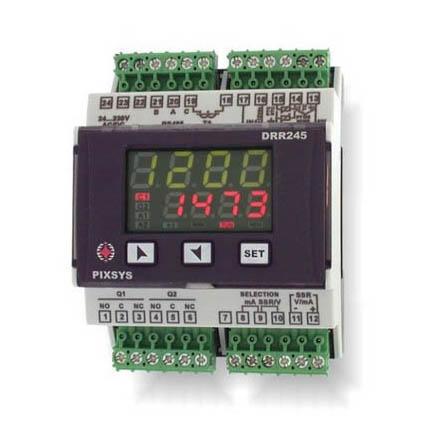

Multi-setpoint PID Controller Signal converter

DIN rail-mounted Controller, single control loop. Distinctive feature is the high configurability available in a single ordering code. Beside operation as multi-setpoint PID controller, the unit can be ideally used as signal converter thanks to universal analogue input (selectable by parameter for up to 18 different signals) and the analogue output which is galvanically isolated […]

SKU : I-975-DRR245

DIN rail-mounted Controller, single control loop. Distinctive feature is the high configurability available in a single ordering code.

Beside operation as multi-setpoint PID controller, the unit can be ideally used as signal converter thanks to universal analogue input (selectable by parameter for up to 18 different signals) and the analogue output which is galvanically isolated and programmable for rescalable retransmission of process/setpoint value.

RS485-ModbusRTU, Loop Break Alarm by current transformer.

User-friendly interface for the operator, programming tools available for quick set-up (MEMORY-CARD, programming and monitoring software LABSOFTVIEW).

Main features

Box: DIN43880, DIN EN50022 rail mounted

Power supply: 24...230Vac/dc ±15% 50/60 Hz (galvanic insulation)

Consumption: 3 W

Display: 4 digits 0,4" green + 4 digits 0,3" red

Operating conditions: Temperature 0-45 °C, humidity 35..95 RU%

Material

Box: Polycarbonate V0; Front panel: Silicon V0

Weight: Approx. 195 g

Sealing: IP65 (Front panel) , IP20 (Box and Terminal blocks)

Quick set-up options: Memory Card with / without battery, software LABSOFTVIEW, EASY-UP codes

Wiring: With terminal extension

Inputs

1 configurable: Selection TC, K, J, S, R, PT100,PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), 0/4..20 mA, 0..10 V,0...40mV, Potentiometer 1...6/160 Kohm, T.A (1024 points)

Sampling time: Programmable up to 4,1 ms (Frequency up to 242 Hz)

1 T.A. input: Selection T.A. 50 mA - 100 msec - 1024 points

1 Digital input: 1/2...4 setpoints selection , Hold, Run, Tuning launch, Start/stop cycle

Outputs

2 Relays: Relays 5 A - 250 Vac resistive charge

1 SSR: 12 Vdc - 30 mA max

1 Analogue: Selection 4 - 20 mA or 0 - 10 Vdc for command or retransmission PV/SPV

Serial communication: RS485 Modbus RTU - Slave

Software features

Control algorithms: ON - OFF with hysteresis, P., P.I., P.I.D., P.D. time proportioned

Tuning: Manual or automatic

Data protection: Lock Command / alarm setpoint

Alarm mode: Absolute / Threshold, band, High / Low deviation. Loop Break Alarm function

Auto/Man function: Output percentage command also with automatic change in case of sensor failure

Double P.I.D.: Heating / Cooling P.I.D.

Programmer function: Start/Stop pre-programmed cycle with 2/3 steps

Soft-Start: Rising gradient expressed as Degrees / Hour
