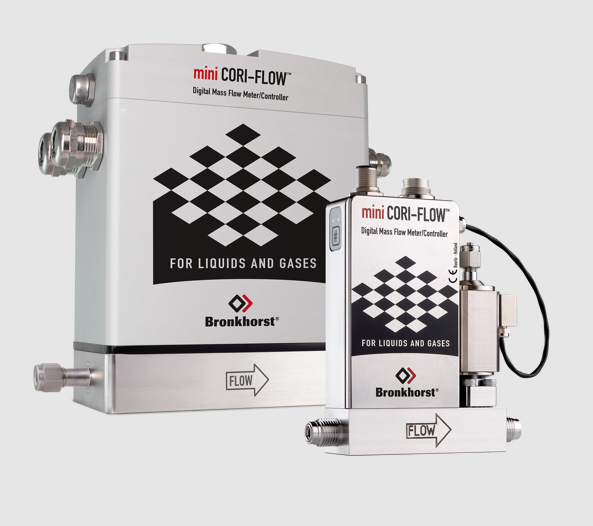

mini CORI-FLOW

Coriolis mass flow meter for liquids & gases with controller output

Technical specifications

• Type Of Media – liquids and gases
• Flow measuring principle – Coriolis
• Series range – For 0…300 kg/h
• Accuracy –
  • ±0.2 % Rd (liquids)
  • ±0.5 % Rd (gases)
  • ±5 kg/m3 (density)
• Repeatability – ±0.05 % Rd ± ½ (ZS x 100/actual flow)%
• Max. Pressure bar(g) – 200
• Fluid Temperature – 0…70 °C
• Ingress Protection – IP66/67

mini CORI-FLOW models

Our Coriolis flow meters offer mass flow measurement of (very) low flow rates, independent of fluid properties. Meaning they are suitable to use for both gas flows and liquid flows.

Where is the mini CORI-FLOW used?

• Flow control of supercritical CO2 in extraction process
• Better quality of candy with ultrasonic flow meters
• Flow controllers for liquefied gas dosing
• Coriolis flow meters for precise dosing of pharmaceutical agents
• Liquid flow meters for vaccine production
