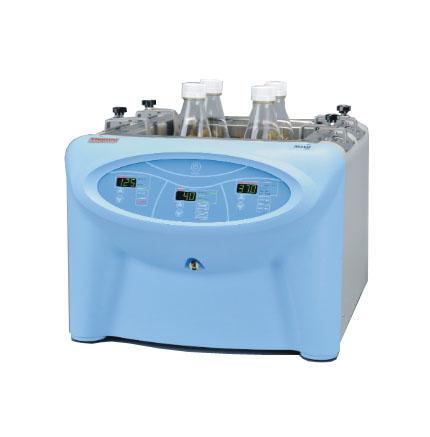

Combine a controlled water bath temperature and orbital shaking motion with the Thermo Scientific™ MaxQ™ 7000 Water Bath Orbital Shaker. These benchtop orbital water bath shakers easily hold large gel trays in an oversized bath chamber and contain an easy-access drain system located in the front of the cabinet. They are ideal for cell culture, solubility studies, extraction procedures, diagnostic tests and many other applications.

Features:

• The MaxQ 7000 is easy to drain and disinfect with the front-access drain system and quick disconnect
• Twin baffles minimize splashing and turbulence in the chamber
• Choice of stainless-steel or Plexiglas™ cover minimizes evaporation and heat loss
• Temperature range of 5°C above ambient to 90°C with use of stainless-steel covers
• Monitor and control chamber temperature range with ±0.2°C accuracy at 37°C in flask
• View speed, time and tesmperature simultaneously on three separate displays
• Triple eccentric drive handles heavy loads, uniform agitation and continuous 24-hr. operation, even at high speeds
• Easy access drain system with quick disconnect is located in the front of the cabinet for convenience in draining and disinfecting the syste
• Low-level water alarm alerts operator
• Optional cooling coil extends the range of applications to near and below ambient
• Holds 11 × 13″ platform which must be ordered separately

Analog Model:

• Variable speed control from 40 to 400rpm controlled by a rotary dial monitored accurately by a traditional tachometer
• Integrated tachometer monitors and displays speed in rpm to guarantee an accurate setting
• Continuous mode or set timer from 1 to 60 min.

Digital Model:

• Speed range: 15 to 500rpm, ±1rpm
• Continuous and timed operation from 0.1 hr. up to 999 hr. or 0.1 min. to 999 min.
• Shaker shutdown and audible/visual alarms signal if unit operates ±10% of set speed, preventing shaker from walking
• Visual/audible signals alert to temperature deviations and low water levels; heat turns off if temperature deviates ±1°C of setpoint
• User-adjustable speed calibration can be performed using a digital handheld tachometer
• Unbalanced load sensor stops platform motion when excess vibration is detected; visual/audible alarms signal until condition is corrected
• Soft-start feature eliminates sudden starts and stops, splashing of vessel contents or wetting of flask closure
• Solid-state DC brushless motor is maintenance-free
• Retains parameters during power failure and restarts automatically after power is restored

Full Specifications	Analog G-405-SHKA7000	Digital G-405-SHKE7000
Speed Range	40 to 400rpm
Temperature Range (Metric)	5° to 65°C
Orbit	1.27cm
Length (English) Platform	11 in.
Width (English) Platform	13 in.
Length (Metric) Platform	27.9cm
Width (Metric) Platform	33cm
Height (English) Exterior	18 in.
Height (Metric) Exterior	45.7cm
Hertz	50/60Hz
Length (English) Exterior	25 in.
Length (Metric) Exterior	63.5cm
Load Bearing Capacity	15.9kg
Motor Type	Triple eccentric drive
Shipping Weight (English)	107 lb.
Shipping Weight (Metric)	48.5kg
Temperature Accuracy	5 deg. C above ambient to 65 deg. C
Timer	1 to 60 min.
Voltage	120V
Width (English) Exterior	21.5 in.
Width (Metric) Exterior	54.6cm
Certifications/Compliance	UL, cUL, CE
Dimensions (L x W x H) Exterior	25 x 21.5 x 18 in. (63.5 x 54.6 x 45.7cm)
Electrical Requirements	120V 50/60Hz
