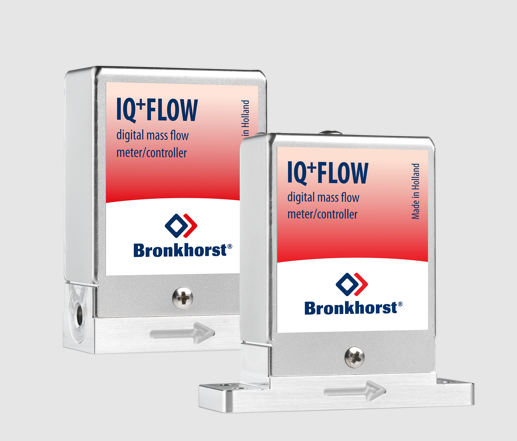

IQ+FLOW

Ultra compact Mass Flow Meter and Controller

The IQ+FLOW series of microfluidic mass flow meters and controllers feature a MEMS chip sensor. Their ultra-compact footprint makes the IQ+FLOW an ideal choice for desktop  equipment in the analytical, biotechnology, and medical markets, where space efficiency is crucial.

Technical specifications

• Type Of Media – Dry, cleaa and non-corrosive gases
• Flow measuring principle – Thermal
• Series range – For 0.2 mln/min – 5 ln/min
• Accuracy – < ±1.5% Rd + ±0.5% FS
• Repeatability –
  • for flows < 20 mln/min: < ±0.2% FS
  • for flows > 20 mln/min: < ±0.5% Rd
• Max. Pressure bar(g) – 10
• Operating Temperature – 5…+50°C
• Ingress Protection – IP40

Where is the IQ+FLOW used?

• Compact gas flow controllers in gas chromatography
• Flow controllers for ICP analysis
