Gyro Telescopic Stand System

The Husqvarna DS 50 Gyro is a telescopic stand system that works with most drill motors. This system features quick mounting, easy drilling and fast unmounting on-site, saving both time and money. The modular system and the stand’s flexibility allow both straight and angled drilling in walls, floors and ceilings. Benefits Fast and easy to […]

  • SKU : G-B11-DS 50 Gyro
  • Manufacturer: Husqvarna
Contact us for details

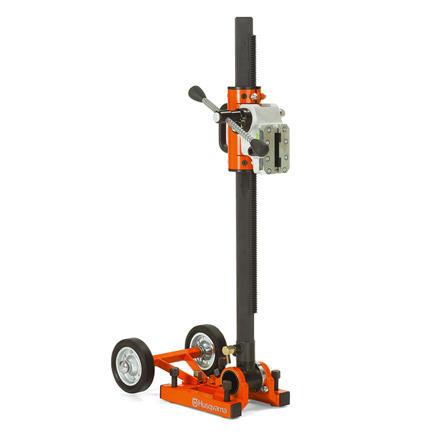

The Husqvarna DS 50 Gyro is a telescopic stand system that works with most drill motors. This system features quick mounting, easy drilling and fast unmounting on-site, saving both time and money. The modular system and the stand’s flexibility allow both straight and angled drilling in walls, floors and ceilings.

Benefits
  • Fast and easy to setup between horizontal and vertical drilling operations.
  • Due to the tiltable and turnable column this is the most efficient stand for drilling numerous holes in various positions with a single setup.
  • Because the unit is installed between the floor and ceiling, with no anchoring, you avoid damage to the surroundings.
  • The flexible column means excellent ergonomics, since there are few lifting steps.
Flexibility
The Husqvarna Gyro is a modular, flexible system with several combination options, where the drill column can be turned 360°, for drilling at almost any angle.

New developed carriage
The drill stand have a newly developed carriage with single and double gearing and a quick connection for easy mounting of drill motors.

The rig is secured with the stanchion
When drilling in floors the rig is secured by putting the stanchion against the ceiling. The drilling column is secured to the base plate using the stanchion screw.

Gyro unit
The drill column can turned 360° thanks to the gyro unit.

Applications
  • Angle drilling
  • Horizontal drilling
  • Vertical drilling


Cutting equipment

Max drill bit diameter

350 mm

Travel length

670/0 mm

Column

Tilting

Continuous

Angling

+/-90º

Length, telescopic stanchion

3,1 m

Other specs

Suitable for

DM 280

Dimensions

Weight (excl. cutting equipment)

56,5 kg

Packaging size, LxWxH

1981,2x914,4x609,6 mm

Weight incl. packaging

70 kg

Weight incl. carriage

56,5 kg
