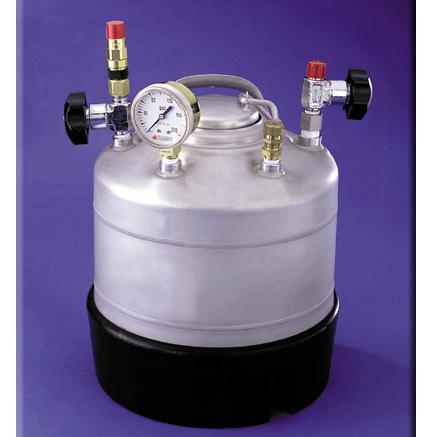

Fuel Storage Stability Vessel

Stainless steel pressure vessels accommodate multiple sample containers for determining storage stability of fuels by the oxygen overpressure method. Vessels meet all applicable ASME and ASTM safety requirements for construction and working pressure and maximum operating temperature and are equipped with pressure safety valves factory present at 200psi (1,332kpa). Included with each model are a […]

Contact us for details
Stainless steel pressure vessels accommodate multiple sample containers for determining storage stability of fuels by the oxygen overpressure method. Vessels meet all applicable ASME and ASTM safety requirements for construction and working pressure and maximum operating temperature and are equipped with pressure safety valves factory present at 200psi (1,332kpa). Included with each model are a collapsible glassware rack that installs and removes easily for cleaning, oxygen inlet and outlet valves with quick disconnect fittings and charging hose, pressure gauge and wide-mouth closure with viton O-ring seal.

Specifications
Conforms to: ASTM D5304

Capacity: Four or six sample containers

Construction: 316 stainless steel, in accordance with ASME specifications

Working Pressure at 90°C: Exceeds ASTM requirements

Safety Relief Valve Setting: 200psi (1,332kPa)

Pressure Gauge: 0-200psi

Included Accessories
Glassware rack, hinged, for four or six sample containers
Charging Hole with pressure tight crimp and quick disconnect

Dimensions
K10600: 8.5" high by 9.5" round
Net Weight: 14 lbs (6.4kg)
K10601: 15.5" high by 9.5" round
Net Weight: 17 lbs (8kg)

Shipping Information
K10600: Shipping Weight: 17 lbs (8kg)
Dimensions: 2.6 Cu. Ft.
K10601: Shipping Weight: 22 lbs (10kg)
Dimensions: 3.5 Cu. Ft.
