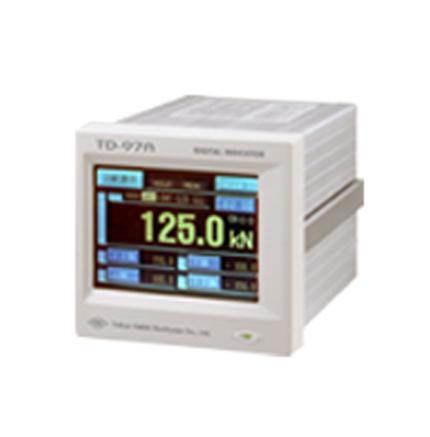

Digital Indicator

TD-97A is designed for efficient production control for the better quality through regulating various measuring applications including pressure, load, torque, acceleration, displacement, and flow. Strain gauge sensors can be connected directly to TD-97A. Color Graphic/Touch panel helps setting operation more accurate and simple with its easy handling. TD-97A is the most suitable indicator for auto […]

Contact us for details
TD-97A is designed for efficient production control for the better quality through regulating various measuring applications including pressure, load, torque, acceleration, displacement, and flow. Strain gauge sensors can be connected directly to TD-97A. Color Graphic/Touch panel helps setting operation more accurate and simple with its easy handling. TD-97A is the most suitable indicator for auto production equipment, sorting machines, testing devices, etc. with 2000 times/second ultra high speed data processing, indication of analog wave form and upper/lower limit comparison functions.
  • Color liquid crystal display and touch panel operation provide clear indication and easy handling.
  • One of three display of comparison, hold, and graphics is selectable by request.
  • Various options are available such as RS-232C communication interface, RS-485 communication interface, D/A converter, DeviceNet interface and CC-Link interface.
  • Equivalent Input calibration makes easy calibration by inputting the rated value of a sensors by touching the display.
  • Analog wave form is digitally analyzed by ultra-high speed sampling of 2000Hz maximum.
  • One touch Zero function
  • Compact square DIN96 size
Untitled Document
Type TD-97A
Number of channels 1 channels
Measuring object Strain gauge based transducers (120 ~ 1000 Ω)
Measuring range ±3mV/V
Indicated value ±99999
Dimension 100(W)×96(H)×143(D) mm
Weight 1 kg
Power supply AC90~250V 50/60Hz 28VA MAX (12W)
