Check Weighing Scales

SELECT SERIES

HW-WP Check Weighing Scales | HW-G Check Weighing Scales
HV-WP Check Weighing Scales | HV-G Check Weighing Scales
FS-i Check Weighing Scales

Product Features for HW-WP Check Weighing Scales

Preset Tare
Comparator Function
Comparator Buzzer with OP-03
Setpoint Control for Simple Batching

Stainless steel, washdown construction. High resolution scales suitable for wet environments.

HW-WP Series Specifications
(Single Range, up to 12,000 Resolution)

		HW-10KWP	HW-60KWP	HW-100KWP	HW-200KWP
Capacity (kg)		10	60	100	220
Resolution (kg)		0.001	0.005	0.01	0.02
Capacity (lb)		20	150	200	500
Resolution (lb)		0.002	0.01	0.02	0.05
Capacity (oz)		320	2400	3200	8000
Resolution (oz)		0.05	0.2	0.5	1
Capacity (lb-oz)		20	not available	not available	not available
Resolution (lb-oz)		0.1
Max. Count		10,000 pieces	12,000 pieces	10,000 pieces	11,000 pieces
Operating Temp.		-10°C ~ +40°C/+14°F ~ +40°F RH < 85%
Linearity		±2g	±10g	±20g	±20g
PanSize (W x D)	mm	250 x 250	330 x 424	390 x 530
	in	9.8 x 9.8	13.0 x 16.7	15.4 x 20.9
Phys. Dim. (W x D x H)	mm	250 x 466 x 437	330 x 615 x 786	390 x 700 x 786
	in	9.8 x 18.3 x 17.2	13.0 x 24.2 x 30.9	15.4 x 27.6 x 30.9
Power		AC 110 ~ 120 VAC, 60 Hz
Weight (approx.)		8kg / 17.6lb	13kg / 28.7lb	19kg / 41.9lb

Product Features for HW-G Check Weighing Scales

Comparator for setting high and low weight targets
Optional comparator buzzer for selected settings
Setpoint control for simple batching
Tilting meter head for best viewing angle

The HW-G Series high resolution platform scales provide counting, percentage, and comparator functions. These versatile scales are useful for packaging, shipping, pharmaceutical, and other applications.

HW-G Series Specifications
(GL Series has a Liquid Crystal Display (LCD) & GV Series has a Vacuum Fluorescent Display (VFD))

		HW-10KGL / GV	HW-60KGL / GV	HW-100GL / GV	HW-200KGL / GV
Capacity (kg)		10	60	100	220
Resolution (kg)		0.001	0.005	0.01	0.02
Capacity (lb)		20	150	200	500
Resolution (lb)		0.002	0.01	0.02	0.05
Capacity (oz)		320	2400	3200	8000
Resolution (oz)		0.05	0.2	0.5	1
Capacity (lb-oz)		20	-	-	-
Resolution (lb-oz)		0.1	-	-	-
Max. Count		10,000 pieces	12,000 pieces	10,000 pieces	11,000 pieces
Operating Temp.		-10°C ~ 40°C / 14° F ~ 104° F
Linearity		±2g	±10g	±20g	±40g
PanSize (W x D)	mm	250 x 250 mm	330 x 424 mm	390 x 530 mm
	in	9.8 x 9.8 inches	12.95 x 16.69 inches	15.35 x 20.87 inches
Phys. Dim. (W x D x H)	mm	275 x 474 x 368	330 x 621 x 771	390 x 712 x 773
	in	10.8 x 18.7 x 14.5	13.0 x 24.4 x 30.4	15.4 x 28.0 x 30.4
Power		GL Series: AC Adapter or 6 'D" size alkaline batteries (600 hours) GV Series: AC Mains only
Weight (approx.)		6 kg / 13.2 lb	11 kg / 24.3 lb	17 kg / 37.5 lb
Standard Accessories		AC Adapter (for GL Series only), Display Cover and Manual

Product Features for HV-WP Check Weighing Scales

Preset Tare
Comparator Function
Comparator Buzzer with OP-03
Setpoint Control for Simple Batching

Stainless steel, washdown construction. Triple-Range scales suitable for wet environments.

		HV-15KWP			HV-60KWP			HV-200KWP
Capacity (kg)		3	6	15	15	30	60	60	150	220
Resolution (kg)		0.001	0.002	0.005	0.005	0.01	0.02	0.02	0.05	0.1
Capacity (lb)		6	15	30	30	60	150	150	300	500
Resolution (lb)		0.002	0.005	0.01	0.01	0.02	0.05	0.05	0.1	0.2
Capacity (oz)		96	240	480	480	960	2400	2400	4800	8000
Resolution (oz)		0.05	0.1	0.2	0.2	0.5	0.1	1	2	5
Capacity (lb-oz)		30			not available			not available
Resolution (lb-oz)		0.1
Max. Count		15,000 pieces			12,000 pieces			11,000 pieces
Operating Temp.		-10°C ~ +40°C/+14°F ~ +40°F RH < 85%
Linearity (g)		±1	±2	±5	±5	±10	±20	±20	±50	±100
Display		7-segment vacuum fluorescent display, character height = 20mm
Pan Size	mm	250 x 250			330 x 424			390 x 530
	in	9.8 x 9.8			13.0 x 16.7			15.4 x 20.9
Dimensions W x D x H	mm	250 x 466 x 437			330 x 615 x 786			390 x 700 x 786
	in	9.8 x 18.3 x 17.2			13.0 x 24.2 x 30.9			15.4 x 27.6 x 30.9
Power		AC 110 ~ 120 VAC, 60 Hz
Weight (approx.)		8kg / 17.6lb			13kg / 28.7lb			19kg / 41.9lb

Product Features for HV-G Check Weighing Scales

Comparator for setting high and low weight targets
Optional comparator buzzer for selected settings
Setpoint control for simple batching

	HV-15KGL / GV			HV-60KGL / GV			HV-200KGL / GV
Capacity (kg)	15	6	3	60	30	15	220	150	60
Resolution (kg)	0.005	0.002	0.001	0.02	0.01	0.005	0.1	0.05	0.02
Capacity (lb)	30	15	6	150	60	30	500	300	150
Resolution (lb)	0.01	0.005	0.002	0.05	0.02	0.01	0.2	0.1	0.05
Capacity (oz)	480	240	96	2400	960	480	8000	4800	2400
Resolution (oz)	0.2	0.1	0.05	1	0.5	0.2	5	2	1
Capacity (lb-oz)	30			-	-	-	-	-	-
Resolution (lb-oz)	0.1			-	-	-	-	-	-
Max. Count	15,000 pieces			12,000 pieces			11,000 pieces
Operating Temp.	-10°C ~ 40°C / 14° F ~ 104° F
Linearity	±5g	±2g	±1g	±20g	±10g	±5g	±100g	±50g	±25g
PanSize (mm)	250(W) x 250(D) mm			330(W) x 424(D) mm			390(W) x 530(D) mm
Pan Size (inch)	9.8(W) x 9.8(D) inches			12.95(W) x 16.69(D) inches			15.35(W) x 20.87(D) inches
Physical Dim. (mm)	275(W) x 474(D) x 368(H)			330(W) x 621(D) x 771(H)			390(W) x 712(D) x 773(H)
Physical Dim. (inch)	10.8(W) x 18.7(D) x 14.5(H)			13.0(W) x 24.4(D) x 30.4(H)			15.4(W) x 28.0(D) x 30.4(H)
Power	GL Series: AC Adapter or 6 'D" size alkaline batteries (600 hours) GV Series: AC Mains only
Weight (approx.)	6 kg / 13.2 lb			11 kg / 24.3 lb			17 kg / 37.5 lb
Standard Accessories	AC Adapter (for GL Series only), Display Cover and Manual

The HV-G Series Triple Range platform scales provide counting, percentage, and comparator functions. These versatile scales are useful for packaging, shipping, pharmaceutical, and other applications.

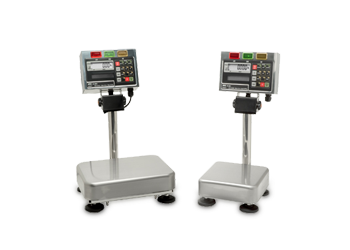

Product Features for FS-i Check Weighing Scales

IP65 rated dust and waterproof protection
100 item data memory
AC operation or optional rechargeable battery
Higher resolution non-NTEP units available
2 Year Warranty

The FS-i Series of Checkweighing Scales feature large, bright comparator lights, stainless steel construction, and three user-selectable resolution levels. FS-i Checkweighers satisfy both NSF and HACCP requirements. These durable scales are ideal for food processing and checkweighing applications. NTEP Certifi ed and Measurement Canada approved models.

		FS-6Ki	FS-15Ki	FS-30Ki
g	Capacity	6000	15000	30000
	Resolution	0.5	1	2
		1	2	5
		2	5	10
kg	Capacity	6	15	30
	Resolution	0.0005	0.001	0.002
		0.001	0.002	0.005
		0.002	0.005	0.01
lb	Capacity	15	35	70
	Resolution	0.001	0.002	0.005
		0.002	0.005	0.01
		0.005	0.01	0.02
oz	Capacity	240	560	1120
	Resolution	0.02	0.05	0.1
		0.05	0.1	0.2
		0.1	0.2	0.5
lb-oz	Capacity	15	35	70
lb-oz	Resolution	0.1	0.2	0.5
Display		7 Sepment LCD (18.6 mm Height) with Backlight + Analog Sweep Display with Backlight
Display Update		10 Times per Second
Power Supply		AC Main (100V ~ 240V) or SLA Battery (Option) Battery Life: Approx. 80h (with no backlight, lamp, or interface)
Operating Temperature		-10°C - 40°C / 14°F - 104°F, less than 85% R.H.
Weight (Approx.)		8.1 kg / 17.9 lb		14.9 kg / 32.8 ulb
Weighing Pan Size		250 x 250 mm / 9.8 x 9.8 in.		380 x 300 mm / 15.0 x 11.8 in.
