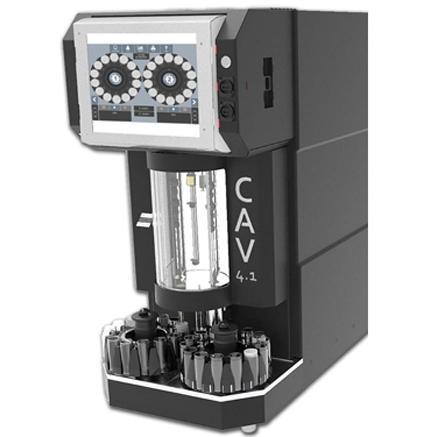

Single-Bath Benchtop Kinematic Viscometer
For Kinematic Viscosity of Transparent and Opaque Liquids ASTM D445/D446, ISO 3104/3105, IP 71

Product Features & Benefits
D2270 Viscosity Index Calculation

• Includes VISCPRO® software for calculation

D445 precision in a modern, dependable design

• Standard temperature range: 40 °C to 150 °C (down to 20 °C with TE bath cooler option)
• Viscosity range: 0.5 mm2/s (cSt) to 10,000 mm2/s (cSt)* in 100-fold increments (easily covering the range of five separate manual glass viscometers)
• Two fully accessible 14-position sample handlers ensure reliable, unattended processing of up to 24 determinations per hour
• Removable carousels
• Automated provides an alternative to laborintensive manual testing; reduces operator to operator variability
• A trusted CANNON viscometer platform offers reliability and dependable support

Compact & self-contained with flexible configuration

• Simple, out-of-the-box installation
• 35% smaller footprint than CAV-2000 series conserves lab space
• An onboard computer permits running preprogrammed test parameters without an external PC
• VISCPRO PC software enables programming of user-defined test methods, and permits one PC to manage and control up to four instruments
• View, print, save and export user-configurable reports

Reduced consumable costs

• ASTM D446/ISO 3105 Ubbelohde-style tubes reduce solvent usage and disposal costs by 50% over larger Atlantic-style tubes
• Automated vial washing and drying enables reuse and reduces vial consumption

Simplified maintenance & test versatility

• Modular chassis design for easy maintenance access
• Operators can physically replace tubes in minutes, eliminating the need for related service calls
• Single-point temperature calibration maximizes flexibility and avoids tube recalibration costs
• Colored status indicator bath lights provide a simple remote indication of operational status
• Run multiple predefined/user-defined test methods within the same sample tray
• High throughput with optional preheating, capable of reaching 135 °C
• Instrument includes standard dual-solvent input

*Some upper viscosity measurements may be limited by test temperature and sample type. Fast run (10-fold range) tubes are also available.
